The Markup tab exposes the user to the tools needed to "markup" the map with customizable map objects.
When the user clicks on the Markup tab the following toolbar will appear. Use the Markup Polygon button to add a graphical polygon to the map.
The left six buttons are "sticky" buttons. When clicked they appear to be pushed in. Only one of these six buttons can be selected at a time. They dictate which markup feature options to display directly below the markup toolbar.
Note: Although the markup polygon option provides the user a way to add polygon features to the map, these features cannot be saved and re-used later. Once the user closes the mapping application all of the markup polygon features will be deleted.

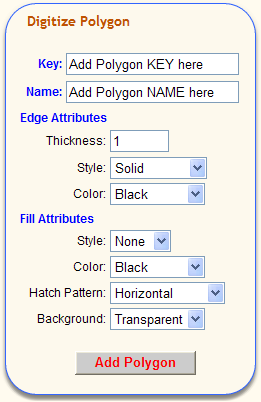

After the user selects the markup polygon button the following input boxes will appear:
Key:
|
Any value that uniquely identifies this polygon feature.
See Important Note at the bottom of the Erase Selected topic.
|
Name:
|
The tooltip, or maptip, information displayed in yellow when the user pauses the mouse pointer over the markup polygon feature.
|
|
|
|
Edge Attributes
|
Thickness:
|
The edge size of the polygon feature in pixels to be displayed in the map window.
|
Style:
|
Specifies the edge style to use for drawing the polygon feature. Select a style from the drop-down list.
|
Color:
|
Specifies the edge color to use for drawing the polygon feature. Select a color from the drop-down list.
|
|
|
|
Fill Attributes
|
Style:
|
Specifies the fill style of the polygon feature. Select a style from the drop-down list; None, Solid, Hatch.
|
Color:
|
Specifies the color to use for the style/pattern of the polygon feature if one is selected. Select a color from the drop-down list.
|
Hatch Pattern:
|
Specifies a pattern of lines that are equidistant from each other in the form of a matrix. Select a pattern from the drop-down list.
|
Background:
|
Select a background type from the drop-down list; Transparent, Opaque.
|
|
|
Add Polygon:
|
After clicking the "Add Polygon" button, the cursor in the mapping window becomes a digitizer.
Left-click on the map at desired start point and continuing left-clicking at all points of the polygon. Double-click the last point of the polygon and it will automatically close the polygon for you by connecting this point to the start point.
|
Cancel:
|
Right-click anywhere in the map window to cancel the add polygon action.
|
|
